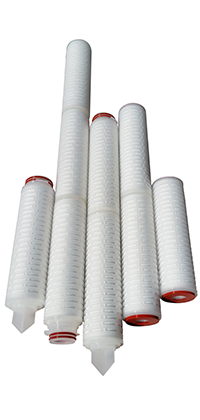

| PLEATED POLYPROPYLENE CARTRIDGE 80°C | |||
|---|---|---|---|
| Pore Size | Lenght | End Cap Code | O-Ring/Gaskets |
| 0,2=0,2 mic. | 1=10″(25,4 cm) | 1=DOE with Gaskets | 1=Silicone |
| 0,45-0,45 mic. | 2=20″(50,8 cm) | 2=SOE-222 Oring & Flat C. | 2=EPDM |
| 1=1 mic | 3=30″(76,2 cm) | 3=SOE-222 Oring & Fin | 3=Buna |
| 2=2 mic. | 4=40″(101,6 cm) | 4=SOE-222 Oring & Spr. | 4=Viton |
| 5=5 mic. | Y=5″ (12,7 cm) | 5=SOE-226 Oring & Spr. | 5=Teflon |
| 10=10 mic. | 6=SOE-226 Oring & Flat C. | 6=Polyfoam | |
| 20=20 mic. | 7=SOE-226 Oring & Fin | ||
| 40=40 mic. | 8=SOE-with Spring | ||
| 9=SOE-with Core Extender | |||

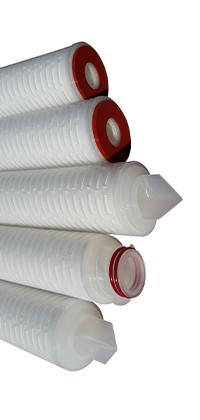

| PHARMA GRADE PES – Hydrophilic Polyethersulfone 80°C | |||
|---|---|---|---|
| GENERAL GRADE PES – Nylon Membrane For Liquid App. 80°C | |||
| PHARMA GRADE PTFE – Membrane Teflon 80°C | |||
| Pore Size | Lenght | End Cap Code | O-Ring/Gaskets |
| 0,1=0,1 mic. | 1=10″(25,4 cm) | 1=DOE with Gaskets | 1=Silicone |
| 0,2=0,2 mic. | 2=20″(50,8 cm) | 2=SOE-222 Oring & Flat C. | 2=EPDM |
| 1=1 mic. | 3=30″(76,2 cm) | 3=SOE-222 Oring & Fin | 3=Buna |
| 0,45-0,45 mic. | 4=40″(101,6 cm) | 4=SOE-222 Oring & Spr. | 4=Viton |
| 0,65=0,65 mic. | Y=5″ (12,7 cm) | 5=SOE-226 Oring & Spr. | 5=Teflon |
| 6=SOE-226 Oring & Flat C. | 6=Polyfoam | ||
| 7=SOE-226 Oring & Fin | |||
| 8=SOE-with Spring | |||
| 9=SOE-with Core Extender | |||

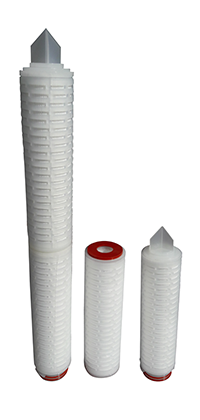

| PLEATED MICROFIBERGLASS CARTRIDGE 80°C | |||
|---|---|---|---|
| Pore Size | Lenght | End Cap Code | O-Ring/Gaskets |
| 0,1=0,1 mic. | 1=10″(25,4 cm) | 1=DOE with Gaskets | 1=Silicone |
| 0,2=0,2 mic. | 2=20″(50,8 cm) | 2=SOE-222 Oring & Flat C. | 2=EPDM |
| 1=1 mic. | 3=30″(76,2 cm) | 3=SOE-222 Oring & Fin | 3=Buna |
| 0,45-0,45 mic. | 4=40″(101,6 cm) | 4=SOE-222 Oring & Spr. | 4=Viton |
| 0,65=0,65 mic. | Y=5″ (12,7 cm) | 5=SOE-226 Oring & Spr. | 5=Teflon |
| 6=SOE-226 Oring & Flat C. | 6=Polyfoam | ||
| 7=SOE-226 Oring & Fin | |||
| 8=SOE-with Spring | |||
| 9=SOE-with Core Extender | |||

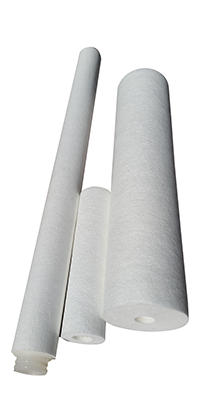

| HIGH PERFORMANCE – Water Grade Polypropylene Meltblown Cartridge 80°C | ||||
|---|---|---|---|---|
| PAW | µ Size | Lenght | End Cap Code | O-Ring/Gaskets |
| W. Grad | 1 3 | 1=10″(25,4 cm) | 1=DOE with Gaskets | 1=DOE with Gaskets |
| PAH | 5 10 | 2=20″(50,8 cm) | 2=SOE-222 Oring & Flat C. | 2=EPDM |
| H. Perfo. | 20 30 | 3=30″(76,2 cm) | 3=SOE-222 Oring & Fin | 3=Buna |
| PAB | 50 70 | 4=40″(101,6 cm) | 4=SOE-222 Oring & Spr. | 4=Viton |
| Absolut | 100 | Y=5″ (12,7 cm) | 5=SOE-226 Oring & Spr. | 5=Teflon |
| B=5000 | 6=SOE-226 Oring & Flat C. | |||
| 7=SOE-226 Oring & Fin | ||||
| 8=SOE-with Spring | ||||
| 9=SOE-with Core Extender | ||||

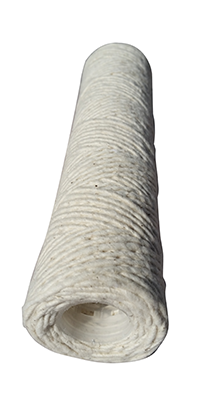

| WOUND DEPTH CARTRIDGE 80°C | |||
|---|---|---|---|
| SAP | Lenght | End Cap Code | O-Ring/Gaskets |
| Polypr. | 1=10″(25,4 cm) | 1=DOE with Gaskets | 1=Silicone |
| SAC | 2=20″(50,8 cm) | 2=SOE-222 Oring & Flat C. | 2=EPDM |
| Cotton | 3=30″(76,2 cm) | 3=SOE-222 Oring & Fin | 3=Buna |
| SACN | 4=40″(101,6 cm) | 4=SOE-222 Oring & Spr. | 4=Viton |
| SAPE | 5=9,75(24,76 cm) | 5=SOE-226 Oring & Spr. | 5=Teflon |
| Polyest | 6=SOE-226 Oring & Flat C. | ||
| SAN | 7=SOE-226 Oring & Fin | ||
| Nylon | 9=SOE-with Core Extender | ||
